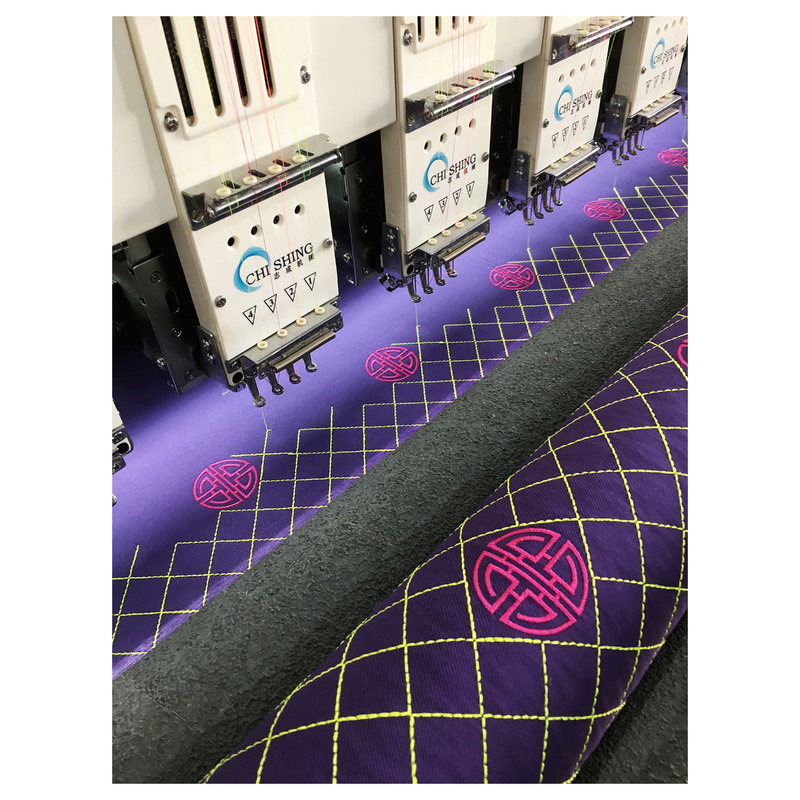

4color moved by sight quliting and embroidery machine

2021 newest model of 4color quliting and embordery machine

Features:

1. the simultaneous performance of quilting and embroidering.

2. High speed 1000RPM

3. High capacity big rotating hook :120M yarn

4. Able to process different materials .For instance PU leather,

cotton fabric ,knitting fabric, foam ,etc.

5. Three axes X,Y,Z arc controlled by Panasonic server motors separately

6. Top and bottom thread break detections

7. Thread trimming and 4 colors can be selected.

8. Automatic memory for the current position in case of power off.

9. The pattern-design system is acceptable to read common embroidering machine design format. USB flash memory is used for storing patterns

10.The fabric-out use the three axes for adjustment it ensure the quilting effect.

11.Effective clutch is matched well with the ROLLER structure at the front and the rear, to prevent any slipping of the fabric material

12.The needle rack is free of lubrication

13.The bottom thread can be used up, without waste

The advantages of the quilting and embroidery machine

1 As the quilting embroidery machine use rotating hook(like sewing machine ) and independent needle and presser foot, stitch very smooth, clear, beautiful, especially for high-quality fabric quilting and embroidering .

(2) Quilting and embroidery machine has the quilting and embroidery function. For instance logo or letters and embroidery flowers can be stitched also.

(3) The assembling standards and movements of needle ,hook and rotating-spindle are in full compliance with Industrial sewing machine manual. sewing action reliable, less stitch skip and low thread breaking rate and needle breakage rate

4) No plate and Shuttle, minimal operating noise

5)For garment industry, if the width requirement is less than 1.6 meters, it can process two sheets of materials at the same time, which can greatly improve the output and efficiency.

Parameter Data

Applications: clothing, bags ,beddings, car seat covers,car mat, shoes,curtains,wall decoration etc.
